PITCH' S HOUSE DESIGN BY INAQUI CARNICERO




PITCH’ S HOUSE DESIGN BY INAQUI CARNICERO

A
B
PITCH’ S HOUSE DESIGN BY INAQUI CARNICERO
The design of these two semi – detached houses is adressed in a non – conventional manner. From the beginning, the two units were conceived as a single Project, and although the program for both residences is identical, the layout is asymmetrical. The finished design answers to the client’ s needs, as well as offers the possibility of being transformed into a single house, envisioning a wider range of plausible scenarios in the future.
The house is located in Los Penascales – ‘’rocky area ‘’ in Spanish – on a slope with many outcrops and oriented to the South. The building, however, does not relate to them, but rather turns its back to the immediate surroundings, interacting with the distant Pardo forest and with Madrid’ s skyline. While the design denies the abrupt topography of the site and the immediate context, the structure delicately leans on the existing rocks with large horizontal planet hat defines the footprintof the building.
Once this datm has been established, the house is organized in two independent units. Car parking and other services are located underneath, and the living areas are put above in a single volüme. Relating to the ‘’ footprint plane ’’ the size, shape, and placement of this hermetic, horizontal prism provides fort he rest of the program: bedrooms, the main bathroom, study rooms, and a little toilet. In this piano nobile, where the Daily life goes on, the floor is covered with White calcareous stone. A unique by window located 1,40 meters fromthe floor trims the skyline of the landscape and uniformly illuminates the concrete ceiling.

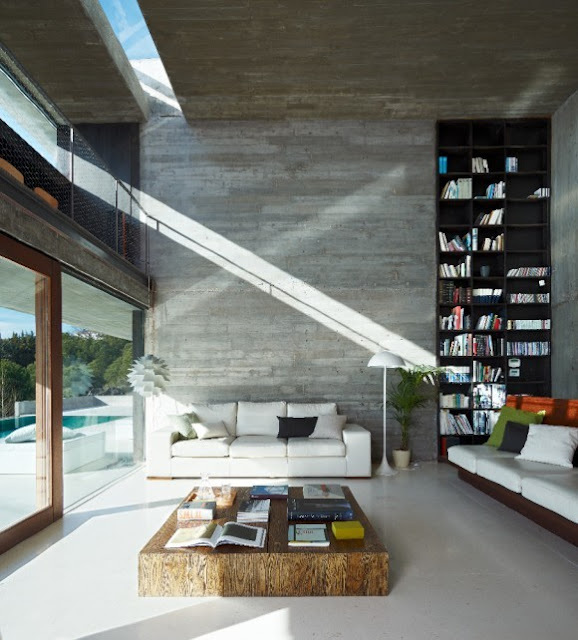

Resting against the hillside, the hanging concrete box serves as a canopy to protect the ground floor from the sun, while stimulating views into the horizon. The horizontal void created practically spans the whole building, bringing natural light into the first floor and allowing it to enter the ground floor diagonally though the central double – height space. This as well as other double – height volumes put in relation the two rather independent levels.
Between these segregated worlds, the entrance appears around a huge rock and through a slightly hidden stair. Inside, objects are clustered and related to one another in multiple ways. In the ground floor, the furniture is reduced to a single element with various functions: storage, kitchen counter, sitting area, and entrance windbreak, in the first floor, all the wardrobes are concentrated in one single strip that is attached to the facade, improving the thermal behavoir of the building, and therefore reducing its energy consumption.  This buiding hosts two dwelling units, but lacks the typical scale of a house. By abstracting traditional dwelling elements, the visitor is mislead and his attention redirected to the specificity of the enviroment.
------------------------------------------------------------------------------------------------
You may visit  Inaqui Carnicero's project of Matadero Art Center Neva 16 Madrid to click below link from my blog archive.

A






 A
 A
 A
 A


 A
A
B








A






A


A
A
 A








IÑAQUI CARNICERO
Active in both the academic field and a professional practice, Iñaqui Carnicero has been an associate professor of design at the School of Architecture, Polytechnic University of Madrid since 2000. A year after graduating Carnicero earned his first commission through a competition for the construction of a university building in Madrid, which was accompanied by his participation in the Venice Architecture Biennale, 2000.
Carnicero has won several competitions and completed many projects, including CEU University, social housing, a high school, the restoration of an Arab tower, a district attorney’s office in Madrid’s City of Justice, a cultural multi-use center in a former slaughterhouse of Madrid, and the Pitch´s house. He is cofounder of the architecture platform “Symmetries,” relating roman and contemporary procedures.
His Ph.D. dissertation focuses on Louis Kahn and Robert Venturi’s discoveries in Rome regarding the perception of size in architecture.
PUBLICATIONS ( SELECTED )
“Ragusa´s Secret,” COAM magazine nº 359, Kahn y Venturi (April 2010)
“A New Scale from Rome,” 10 tesis en curso. AAVV. Editorial Mairea (2011)
“Symmetries manifesto” www.symmetries.es
AWARDS, GRANTS, AND FELLOWSHIP ( SELECTED )
Rome Prize, Spanish Academy in Rome (2007)
Design Vanguard Award, Architectural Record (2011)
Selected Emerging Architecture Awards, Architectural Review (2011)
Hauser Award (2012)
Final stage, FAD Awards (2012)
EXHIBITIONS AND PRESENTATIONS ( SELECTED )
RIBA exhibition International Emerging Architects, London (2011)
Architecture week in Prague International exhibition (2011)
International 2012 Emerging Future, GA gallery, Japan (2012)
